Water and Heat meters for Potable and Heating Systems

FOB Reference Price:Get Latest Price
US $300-499 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
Q&T
Model Number:
DN15-DN6000 mm
Product Name:
Water and Heat meters for Potable and Heating Systems
Medium temperature:
-40°C - +150 °C
Caliber:
DN10 - DN 3000 mm
Communication:
RS-485,MODBUS,HART
Body material:
Carbon steel or stailless steel 304
Connection:
Flange, Clamp on, Thread
Power supply:
220V AC 50Hz/24V DC ,battery
Nominal pressure:
1.6 Mpa ,2.5Mpa ,4.0Mpa ,6.3 Mpa
Accuracy:
+/-0.2% (Customize), +/-0.5% (Standard)
Liner material:
Teflon, PFA, F46, Neoprene, Polyurethane, ceramic
SupplyAbility
SupplyAbility:
1999 Set/Sets per Month
Packaging & Delivery
Packaging Details
1:Export plywood packing with foam liner.with DN150MM
2:Carton box with thin film wrapped,if caliber less than 150mm
3:Export standard packing according to buyer's requirements
Port
Shanghai/Tianjin/qingdao
Lead Time :
Shipped in 3 days after payment
Water and Heat meters for Potable and Heating Systems


Application:

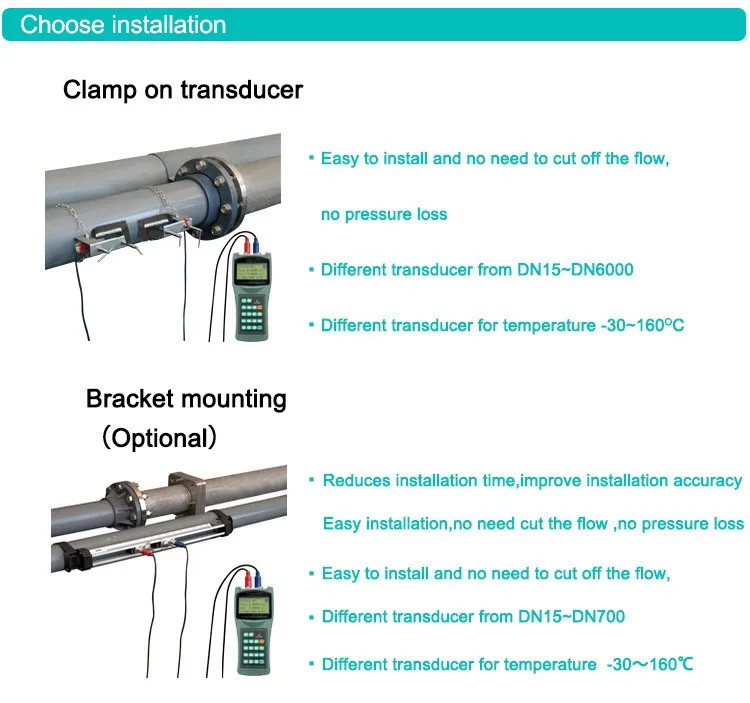

The ultrasonic flow meter is designed to measure the fluid velocity of liquid within closed conduit. The transducers are a non-contacting, clamp-on type, which will provide benefits of non- fouling operation and easy installation.

Features:

0.5% of linearity0.2% of repeatability
Bilingual interface in Chinese and English4-way flows totalizers
Transmission and receipt patents of balanced lower-voltage and multi-pulseBuilt-in date totalizers
Built-in data loggerGood anti-interference performace
0.5 second totalizing period100 Pico-second resolution of time difference measurement




Linearity0.5%
Repeatability0.2%
Accuracy±1% of reading at rates>0.2mps
Response0-999 seconds
Velocity±32m/s
Pipe Size15mm-6000mm
Rate UnitsMeter,Feet,Cubic Meter,Liter,Cubic Feet,USA Gallon,UK Gallon,
Oil Barrel,USA Liquid Barrel, UK Liquid Barrel;
Totalizer7-digit totalizers for net accumulation and positive and negative accumulations
Liquid Typesall liquids
SecurityLocks of Set values, you have to unlock while changing data;
Display4x8 Chinese or 4x16 English letters
Communication InterfaceRS-232C,baud-rate :from 75 to 57600.Protocol made by the
manufacturer and compatible with that of the FUJI ultrasonic flow meter.
TransducersModel M1 for standard,other 3 models for optional
Transducer CordStandard 2x5 meters,optional 2x10 meters
Power Supply3AAA Ni-Hbuilt-inbatteries.When fully rech arged it will lastover 10 hours of operation.
100V-240VAC for the charger
Data LoggerBuilt-in data logger can store over 2000 lines of data
Manual7-digit press-key-to-gototalizer for calibration
HousingABS

V-method Installation

V-method installation is the moswidely used mode for daily measurement with pipe inner diameters ranging from 15 millimeter to 200 millimeter. It is also called reflective mode or method.

Z-method Installation

Z-method is commonly used when the pipe diameter is between 300 millimeters and 500 millimeters.

W-method Installation

W-method is usually used on plastic pipes with a diameter from 15 millimeters to 100 millimeters
