Quick Details

  • Place of Origin: Henan, China (Mainland)
  • Brand Name: QT
  • Model Number: QTMF
  • Nominal Size: DN3~DN200
  • Power supply: 24VDC±5%, 220VAC ±10% 50Hz
  • Accuracy: ±/-0.2%, ±/-0.1%
  • Output signal: 4- 20 mA, pulse
  • Communication: RS-485.HART
  • Temperature: -150°C - +300 °C
  • Nominal pressure: 0-4.0MPA ,high pressure custom-made
  • Material: the measuring tube 316L, housing: 304
  • Installation type: Flange
  • Ex-proof: Exd(ia) IIC T6Gb

Packaging & Delivery

Packaging Details barometer sensor digital fermentation slurry alcohol mass flow meter Export standard packing (Plywood case without nails) with plastic film
Delivery Time 7~10 days after receiving the full payment

barometer sensor digital fermentation slurry alcohol mass flow meter

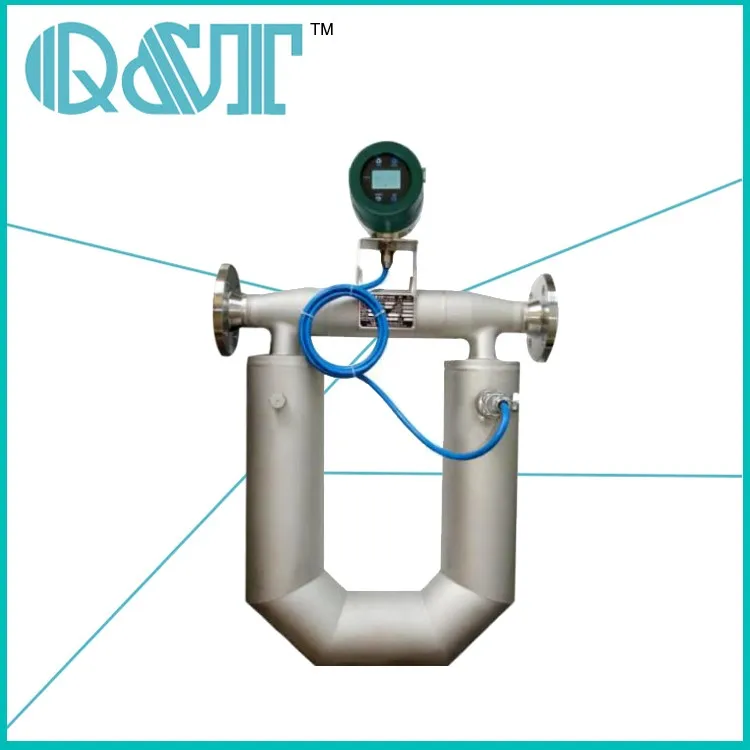

Coriolis mass flow meter (PHCMF) is a new type flow meter which is designed according to Micro Motion and Coriolis principle.This kind of new flow meter can measure the fluid directly in a sealed pipeline. It consists of two sections: Sensor and Signal Transmitter.

Features

  • Measuring fluid flow rate directly (It is significant to the energy measurement and chemical reaction during the producing detection)
  • High Measurement accuracy: (0.1%~0.5%)
  • Wide Application (Besides general fluid measurement, other industrial medium which is hard to be measured by general flow meters also can be measured, such as Non-Newtonian fluid and Slurries etc.)
  • Low Installation Requirement: (there is no requirement for straight pipe upstream or downstream) Reliability, low maintenance rate.

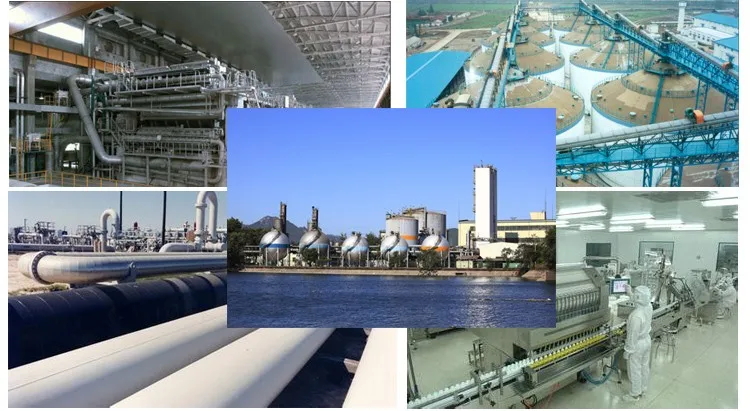

Application

The PHCMF mass flow meter can be used in the following fields to meet the requirements of ingredient, mixing processes and commercial measurement.

  • Chemical: containing chemical reaction system
  • Petroleum: moisture content analysis
  • Lipids: including vegetable oils, animal fats and other oils
  • Pharmaceutical
  • Painting
  • Paper making
  • Textile printing and dyeing



Display128x64 LCD display, Window size: 54x40mm (WxH) Φ80mm
Display Accuracy0.02%
UnitMass flow rate: g/h, kg/h, t/h, g/m, kg/m, t/m
Total flow: g, kg, t
Volume flow rate: ml/h, l/h, m 3 /h, ml/m, l/m, m 3 /m
Total volume: ml, l, m 3
Density: kg/m 3 , g/cm 3
Temperature: ℃,F, K
Ambient Temperature0~10000Hz pulse frequency signal flow signal (open collector signal)
Equivalent pulse signal flow signal
4~20mA   Current signal   choose one signal from flow rate, density, temperature
Accuracy: Pulse signal    0.02%
                Current signal    0.2%
Communication signal: RS485, MODBUS protocol
Power Supply18~36VDC power≤7W
85~265VAC power: 10W
ProtectionProtection: IP67
Ex-proof: Ex d [ia]ⅡCT6Gb
DimensionΦ125×180mm


SpecificationDN (mm)Flow range(kg/h)
PHCMF-00660~600~720
PHCMF-00880~960~1200
PHCMF-010100~1800~2100
PHCMF-015150~3600~4500
PHCMF-020200~6000~7200
PHCMF-025250~9600~12000
PHCMF-032320~18000~21000
PHCMF-040400~30000~36000
PHCMF-050500~48000~60000
PHCMF-080800~150000~180000
PHCMF-1001000~240000~280000
PHCMF-1501500~480000~600000
PHCMF-2002000~900000~1200000
